Im trying to work out how the best way to arrange / put lights around the windows on the paybox.

I would like to use the same number as 'bulbs' as the ride im using as a main reference, but its just not gonna be possible, im limited by the size of the leds and FDM printing.

This is the outside of the front window.

This is the inside of the front window.

Im thinking of keeping that like that and designing the pcb to stick to the inside of the paybox, with each led being in its own little hole for light isolation.

I was originally going to have the lights and such be a separate piece that just attaches to the outside of the paybox, but im not sure it would hold up very well during printing.

The thing im really worried about, is the curved windows on the sides of the paybox, I can order some petty thin pcbs that should be easy to bend to shape, but i dont know how the solder on the leds will react to a fairly tight curve.

I should have made the pin wheel a bit wider, then i could hook the moving platforms when the paybox is in place, like the real ride. The moving platform sizes are fine, but i would need to reprint the hinge bars, and i really dont want to, simply because assembling them was a bitch😭.

I printed the motor mount and was fitting the platform and ended up snapping the fucking shaft😭

I was screwing the mounting screws in to help keep the paybox platform stable and not rotate, and it just broke at the screw point.

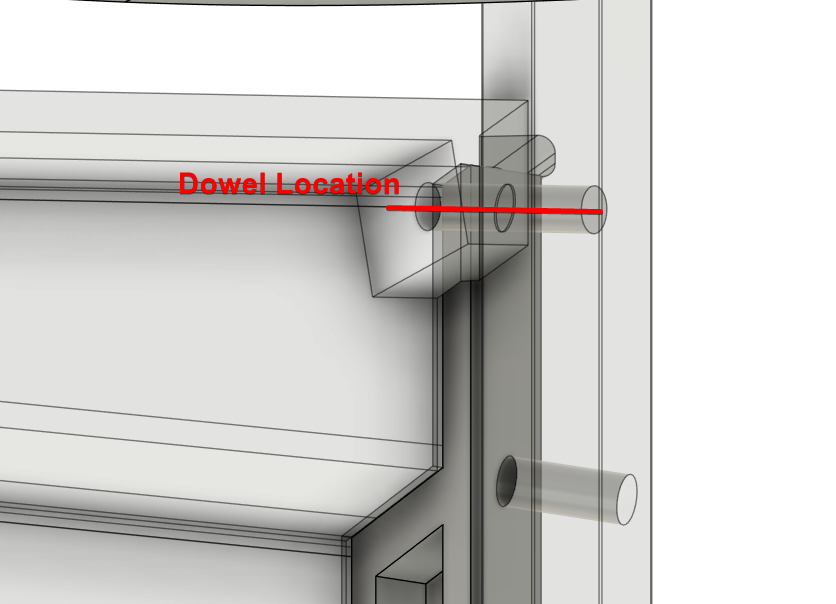

So i checked the CAD version and realized i changed the mounting from using m3 screws to the 2mm dowels, so when i screwed the m3 screws in, it just broke the joint😒

One problem with the motor mount is that it can only be printed in one way orientation, so the layer lines end up going horizontal across the mounting shaft, which ends up a weak point. Oh and i thinned the wall of the shaft to give a bit more room for cables, yeah... ive reverted that.

Im reprinting it, i cant be bothered to change the spool so its going to be grey.

You would think that reducing the height of the gates by 2mm would have given it better clearance between the moving platforms and the walkway, but its still a little tight, its functional, but tight. If i snip the hinge pin hook down a little it should be more than fine, i certainly wont be reprinting all the gates again.

I just briefly inserted the wires where they need to go on the motor mount and paybox.
They fit, but only just, and i mean only just, they was pinched and almost broke the coating on the wire, so now im just modifying that and the paybox platform so that they have a little more freedom.

The wires enter though the underside of the motor mount and go up through the main shaft holding the platform in place.

Then they come out of the top, which is originally where they was pinching.

What if, when you die, you have to choose one person to always see a live view of only there face, nothing else. That would be torture lmao, especially if they are bashing the bishop😂

Just looking at this for eternity, never being able to look away or blink.

ChatGPT post 2024 be like

Im tempted to adjust the sleepers and reprint them, It would be a bitch and take forever, but where the lower brace connects the 2 sleepers, i decided to use pushfit after trying an failing with magnets, But when i did the push fit, altho it works, it could be better, im thinking of making the hole a hole instead of an indent, so the brace can be pushed all the way though.

Its hard to explain really, the braces dont do anything except make sure the sleepers and gates are the correct distance apart, but, thats also accomplished by the posts, walkways and tracks.

I only really bothered with them because they are on a real waltzer, they are kinda useless at this scale lol.

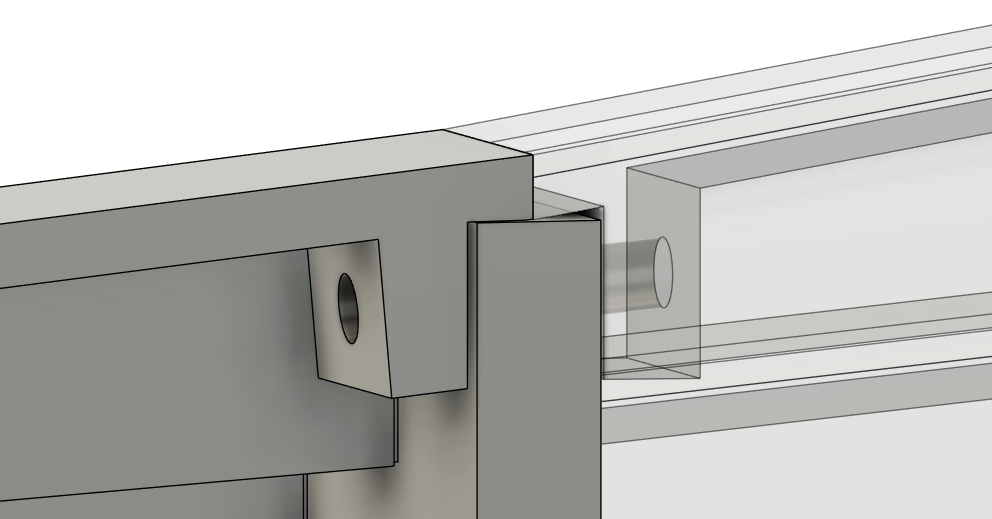

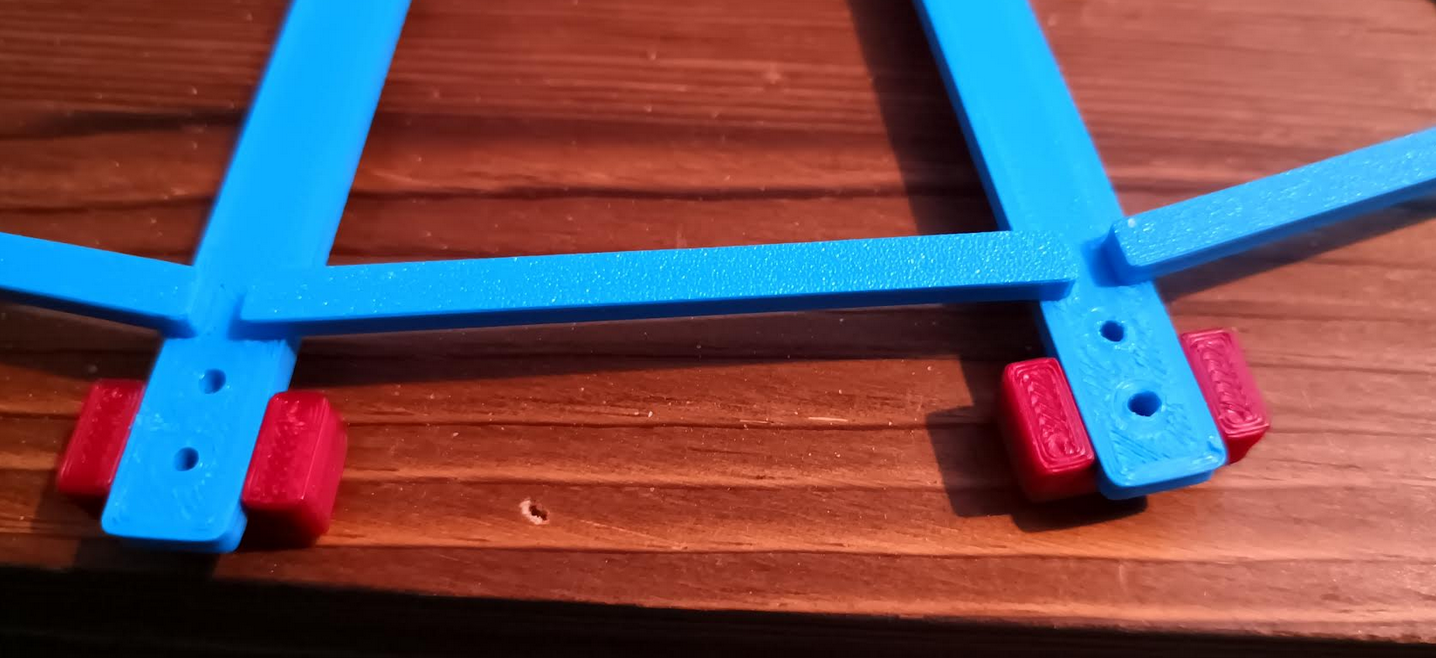

This is the brace disconnected.

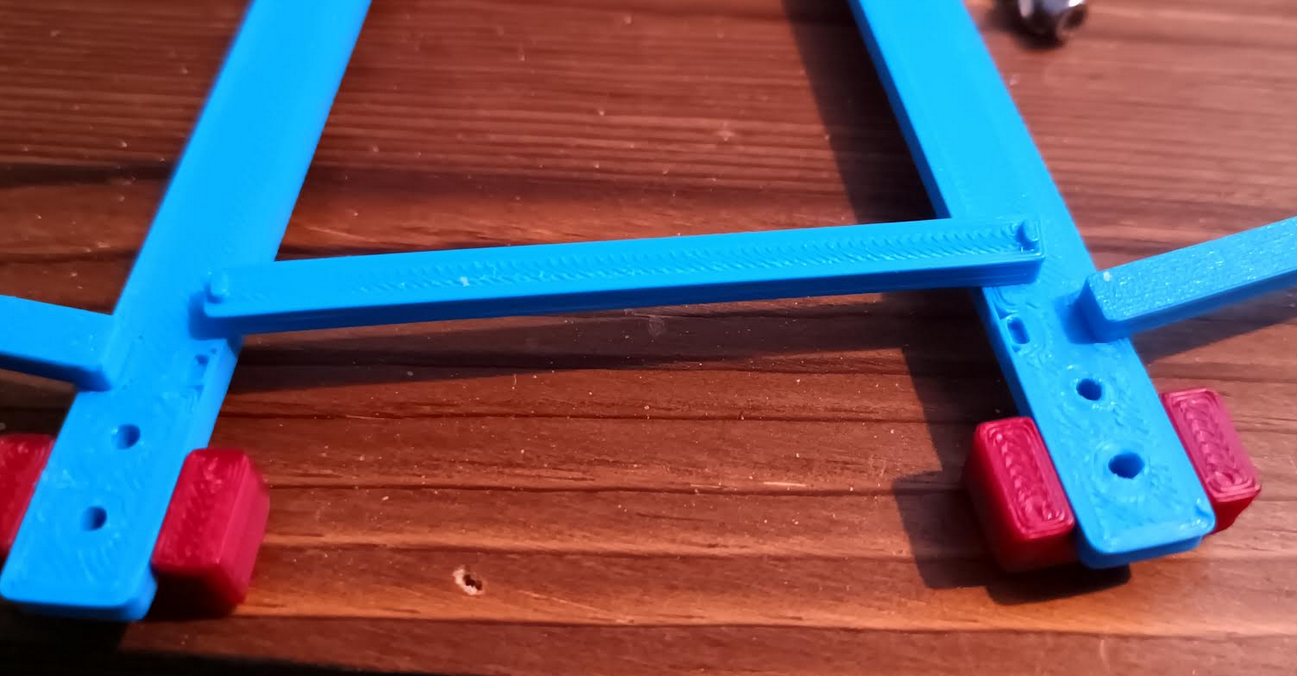

This is it in place.

It holds well, but is easily knocked off.

I wonder if vegans worry about killing bugs, like when driving or walking, or do they not count?

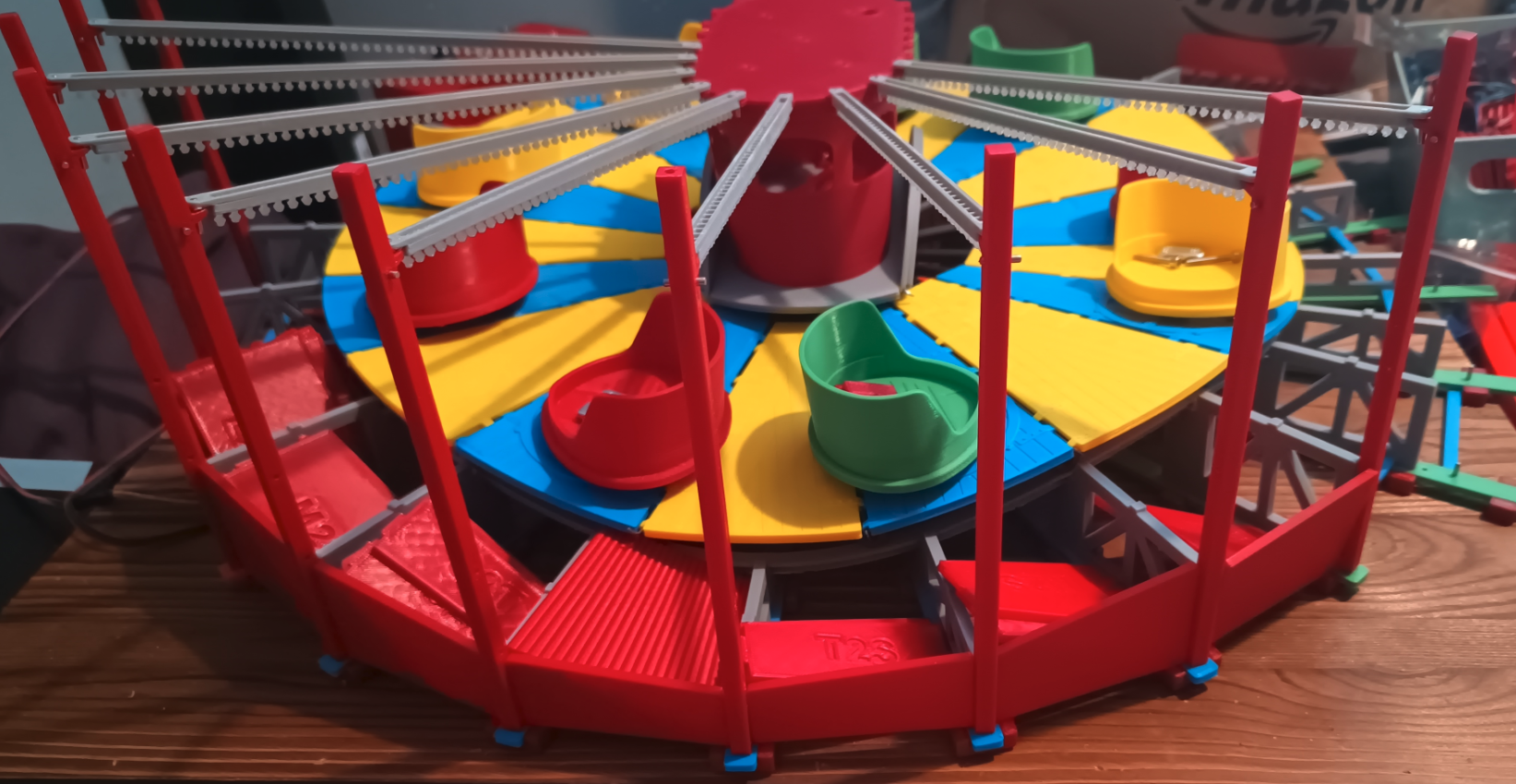

Here is the waltzer as it currently stands.

I have decided to modify the gates instead of the walkways. its more effort in terms of tearing the ride down and building it up again, but its easier and quicker than modifying the walkways when including the print time.

I can print a new set of gates in less than 5 hours, and it wont take me 9 hours of work to reconstruct the ride.

Thats my reasoning anyway

Oh im gonna reprint the top braces, they are lose on the pins, the pin is 2mm, and i set the hole in the braces to 2.5mm... i have no idea what i was thinking, ive reduces it to 2.2mm, so fingers crossed.

Ill be honest, quite early in the development of this, i thought i fucked up the gate height. On the original ride, they have these braces that go between the tops of each gate, to keep them an equal distance from each other and for the middle of the walkways to rest on. But i have no information to go on for the dimensions of those braces. so i just kinda guessed. It was pretty close, but not close enough 😒

Anyway, when i was designing the walkways, i originally thought, well they can all be a single walkways, just printed multiple times, but then i realized very quickly when fitting them, they wont ever be planar, unless im mistaken, you cant have undulations like we have on the waltzer, that go in a circle, and have something rest on 4 points on the gate without it twisting some way. Which is how the real waltzer works, they are wooden or metal, but they have some level of twist to the walkways, so they kinda naturally twist to the correct shape, but with 3d printing, especially at this scale, that natural twist doesnt exist, so i had to essentially bake the twist into the printed parts, which makes it impossible to print them flat against the print bed without a raft, and thus increases the print time.

I started to erect the posts and what not, and im now realizing, despite me adjusting the walkways and the gates, there still isn't enough of a gap between the top of the walkway and the bottom of the moving platforms, its way better than it was, but its still touching in some areas.

Now i have to decide, do i adjust the gates to raise the track a little, and then reprint the gates, or do i adjust the walkways and reprint them.

If i reprint the gates, i have to tear the ride down again, add the pins, redrill the holes and rebuild it from the start, then reattach the tracks, BUT i can make a couple of adjustments, one for the tracks / walkway, and one for the posts , the posts are just a little to close to the gates in some places, they fit, but tightly, so i could knock half a mm off the end of each gate and give the posts more room. Gates print fairly fast.

If i adjust the walkway, it would be quicker to adjust and i wouldn't have to tear the ride down again, but, the walkways are a bitch to adjust because they arnt planar and they take FOREVER to print. I have no idea why they take so long to print, no matter how much i try to reduce the printing time, i cannot get it down to less than 14 hours for all 24 walkways.

😭😭😭😭😭

I really should start building the rest of the waltzer up, so i can continue on the roof and such, i just feel so lethargic with this damn heat😭

I did put the pins in the end of each rafter today, so they hook into the roof of the paybox and onto the posts.

This waltzer has A LOT of pins, they are all 2mmx10m steel dowels, they are fairly cheap on amazon, probably even cheaper on ebay.

Im gonna try and work out roughly there are.

There is 4 for the frame, but they might be 3mm pins, i forget.
24 for each connection for the sleeper to the frame,
48 for the gates, 2 for each,
120 for the posts, 5 on each post (1 for the top brace, 1 for each end of the post, and 2 for the handrails),
48 for the rafters, 2 for each rafter,
18 for each wheel axle
18 for each hinge bar support
18 for each hinge bar connection to the pin wheel
8 for the front steps,
8 ish for the front truss, but i haven't finished designing it yet.

So 320ish min would say, i thought it would be more tbh🤷‍♂️

The temp today is as hot as it was last night, but doesnt feel anywhere near as hot, weird 🤷‍♂️

Anyway, i have soldered up 3 rafters.

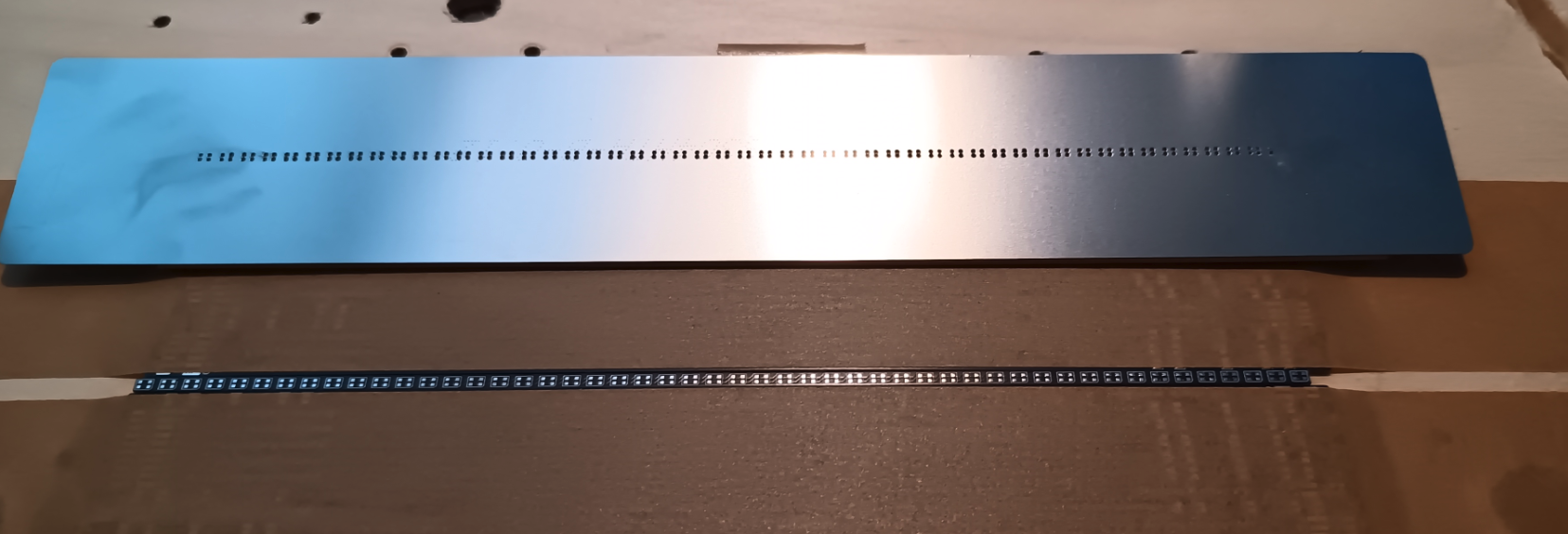

This is the stencil setup i have, very high tech😂

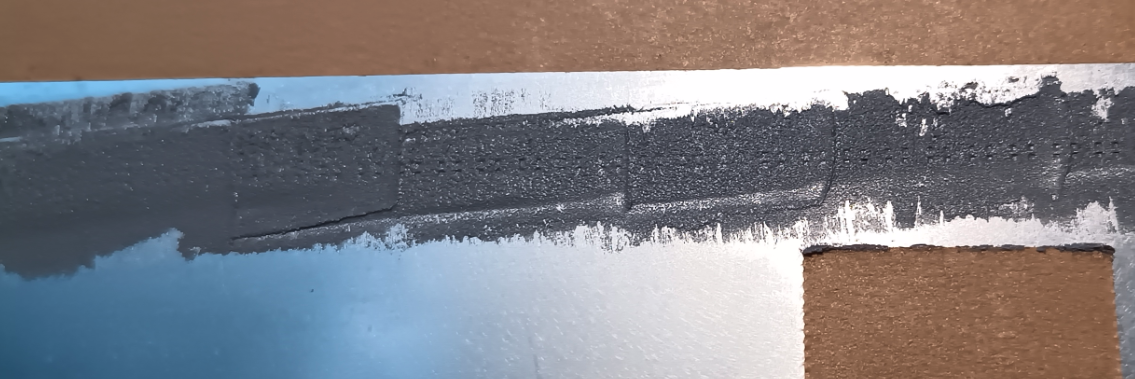

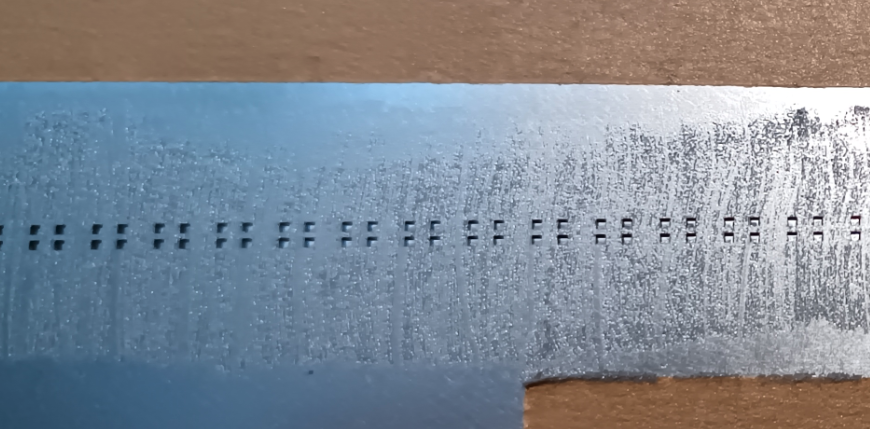

Flip the stencil over and make sure the holes line up.

Apply the paste, then scrape the excess off

Flip the stencil back over and check the to make sure no solder is missing.

Stick it on the hot plate and wait for the solder to melt, it happens quite fast for small boards.

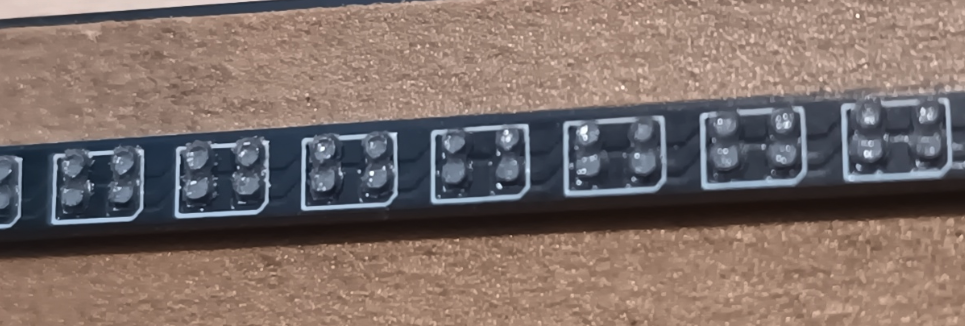

Check the joints, make sure there isnt anything weird happening (to much solder can cause tombstoning)

Solder on the wires (i forgot to take pictures of that)

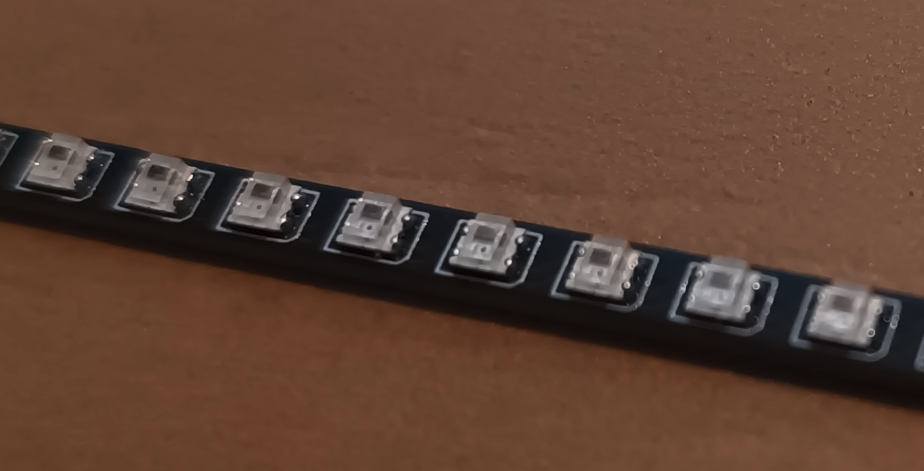

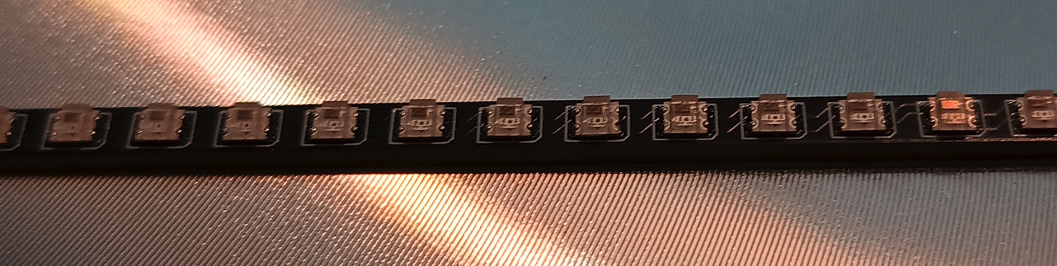

Here it is, finished.

Despite the fact it appears to be working great, there is one issue.

When multiple rafters are connected to the distribution board, everything after the first rafter goes haywire.

It could be for multiple reasons, one which is easy to rule out, and thats making sure all the rafters work individually, which they do, so that rules out a soldering or led issue.

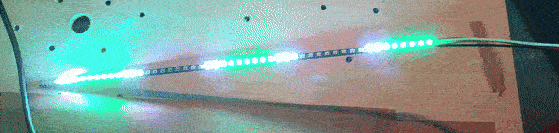

I am using a cheap ws2812b led controller that came with some led strips, so it could be that as im not using ws2812b leds, im using ws2812c leds, so there might be some weird timing issue or something 🤷‍♂️

The most likely cause could be that i was powering them though my PC's usb port. The controller is running them at full brightness, which can pull a decent chunk of current with almost 150 leds. So im going to ignore the issue until i have it connected to a proper power supply and ive wrote the pico pi code to control them 😂

Oh another reason i think its power related, All three rafters work fine when its showing only red with 50% of the leds powered on, and red is the color that pulls the least current for the same brightness (i think).

I completly forgot to check and see if the rafter pcb actually fit into the rafter

Im gonna be honest, its tight, the width is fine, but the length is tight.
I think its a mix of slightly too long pcb, and over extrusion on the print. All i needed to do was trim inside of the rafter a little with an xacto knife, and besides, most of the rafters will be using cut down pcbs anyway, so the length shouldn't be an issue.

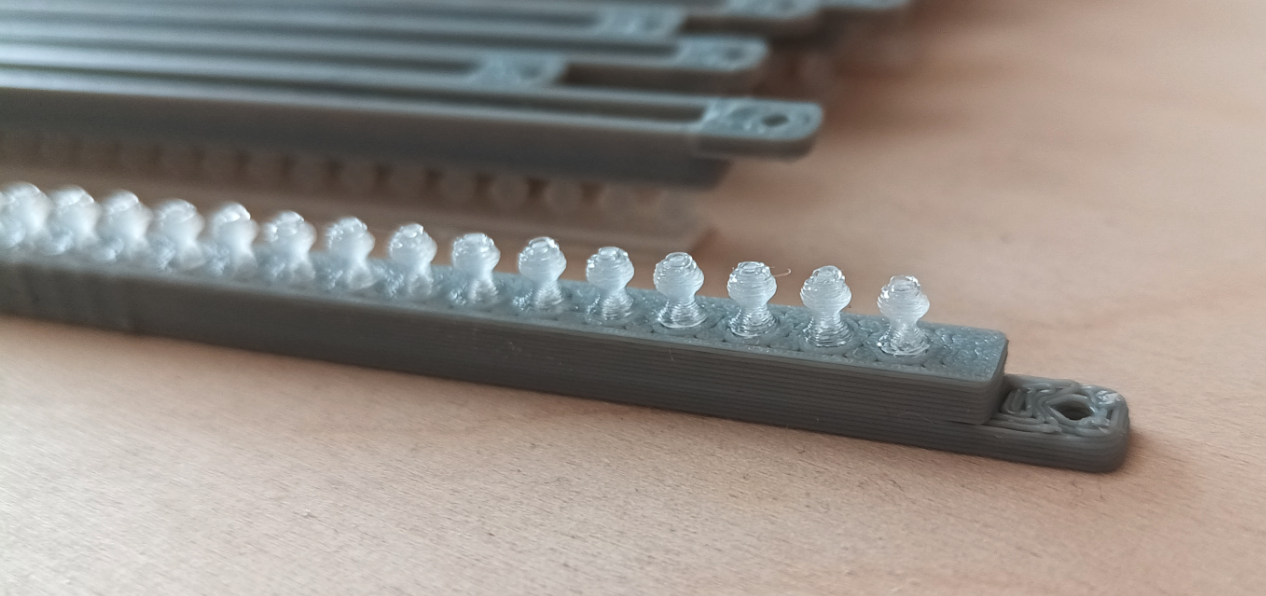

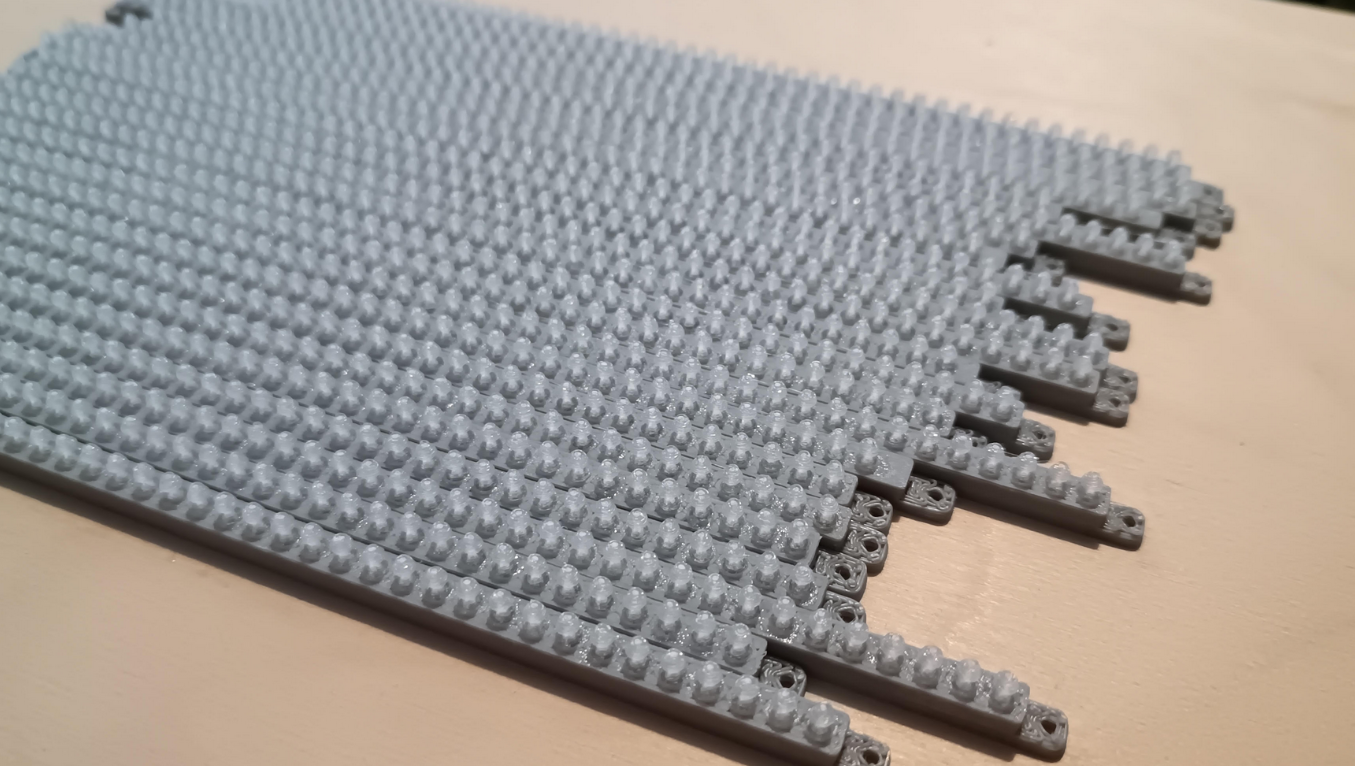

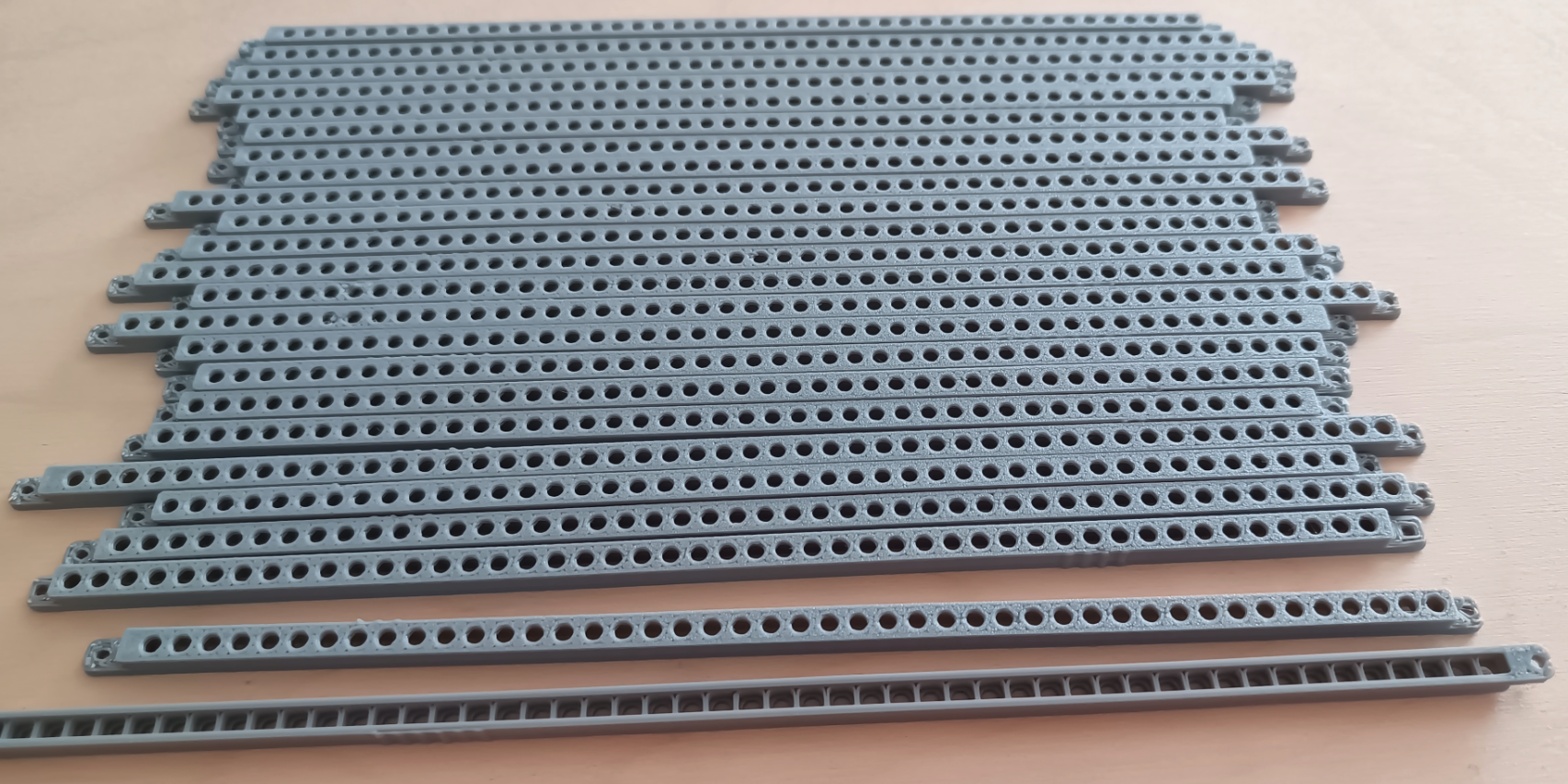

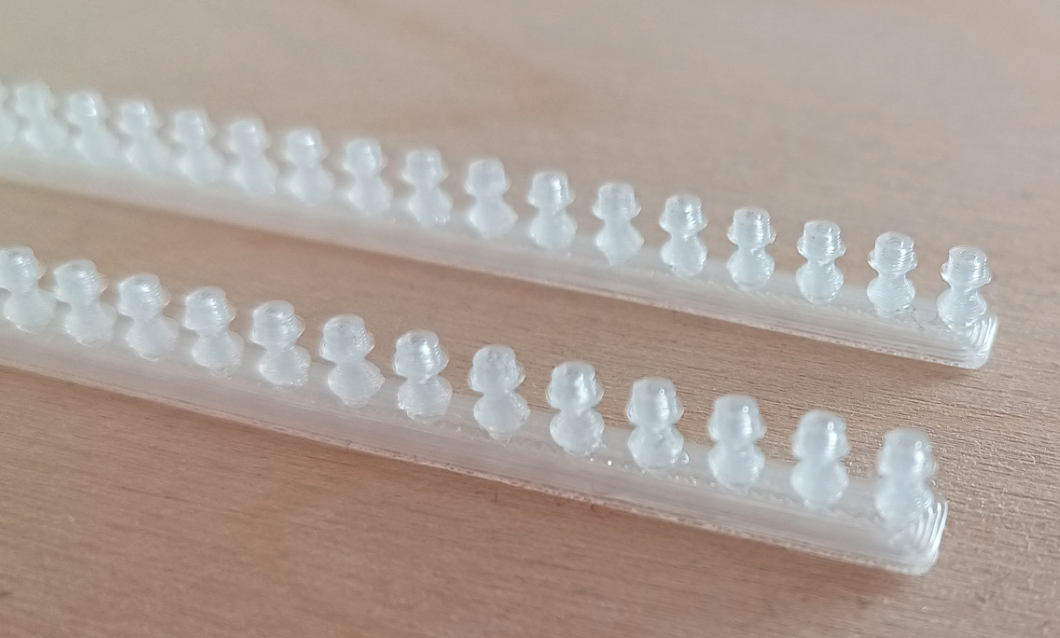

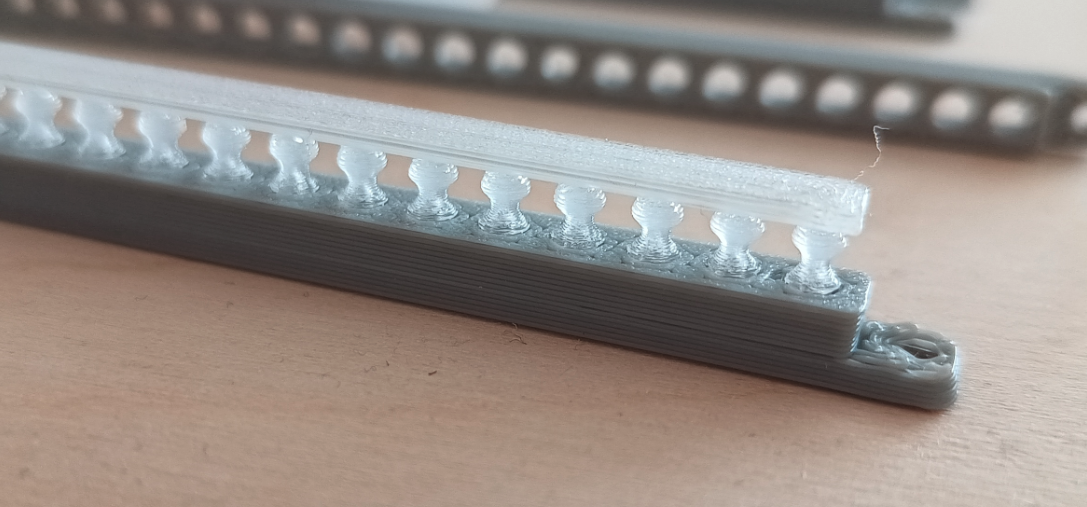

If i hadnt glued the bulbs into the rafters already, i would have just modified the rafters and print new ones.

I cant wait to see how they look, it will either be crap or ok😂

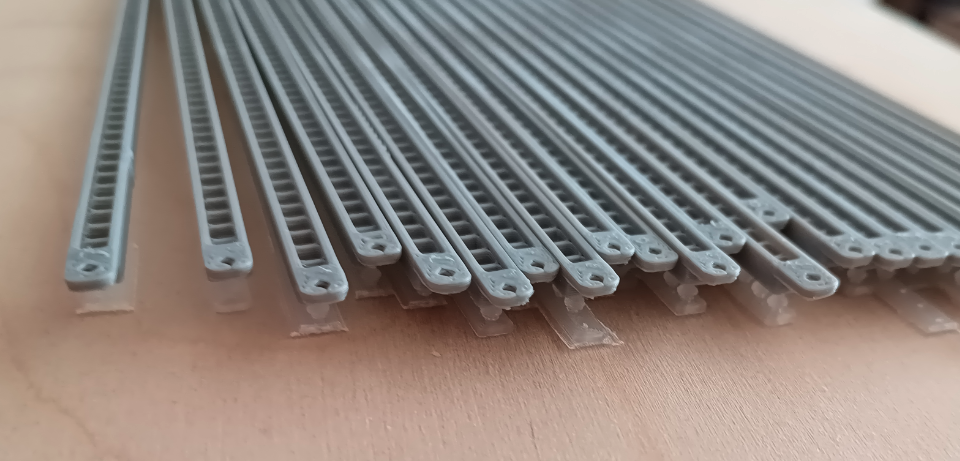

I have little dividers in the rafter which are sized to give each led there own little walled off section, im hoping that will prevent bleed from the adjacent leds.

It is cooling down a little now, so i might be able to make one up tonight, i havent decided yet.

Oh and if you want to see bigger pictures, just right click the picture and "Open image in a new tab" and it will be a bit bigger.

urgggh there is so much shit i wanna work on right now, but its so damn hot.

I want continue building up the waltzer, i want solder up a few rafters to make sure they are functional & i want to print some more parts for the waltzer but noooo the weather says no 😒

I cant even watch any tv shows cause my headset just makes me hot and sweaty😭

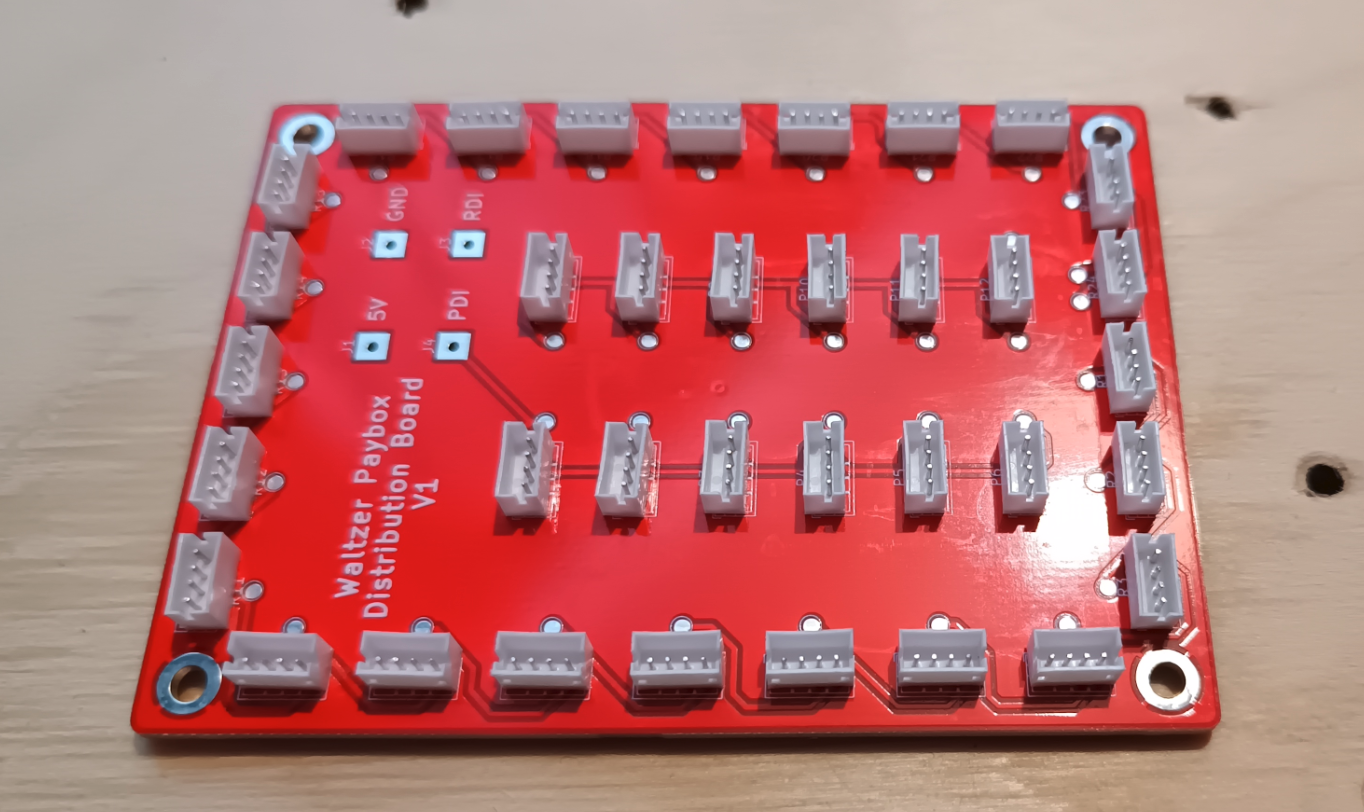

Distribution board all soldered up

I fucked up the pinout for the headers, so i had to rotate the connector 180 degrees, i was high when designing it, so it could have gone way worse lol

I could have left it as it was, but the cable colors are reversed. I could rearrange all the wires in the connectors, but thats way to much work, especially considering im probably the only person who will ever use one of these pcbs 😂

I have no idea why my phone appears to have such a shallow depth of field, its pretty annoying, especially when something like this board should fairly easily fit, in focus, in a single image.

They have arrived😈

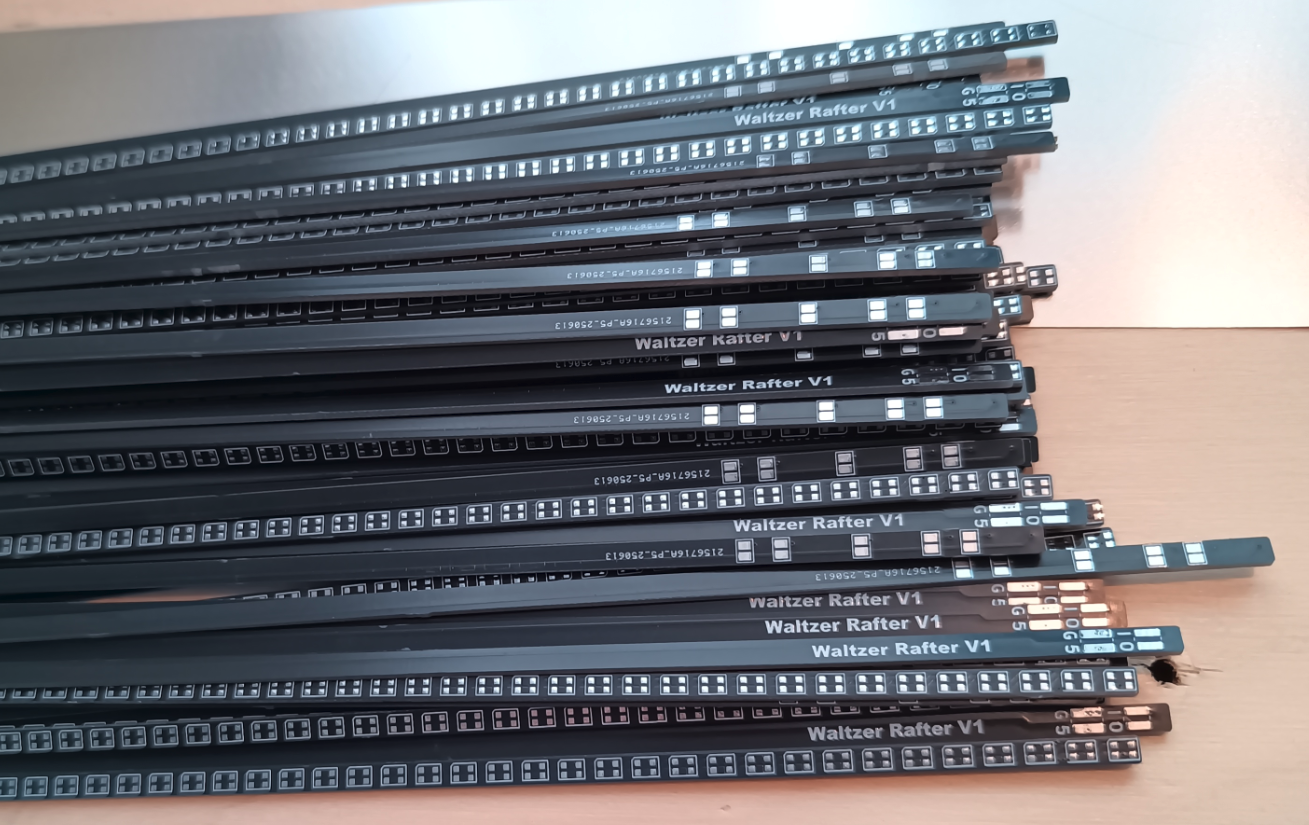

The rafter pcbs

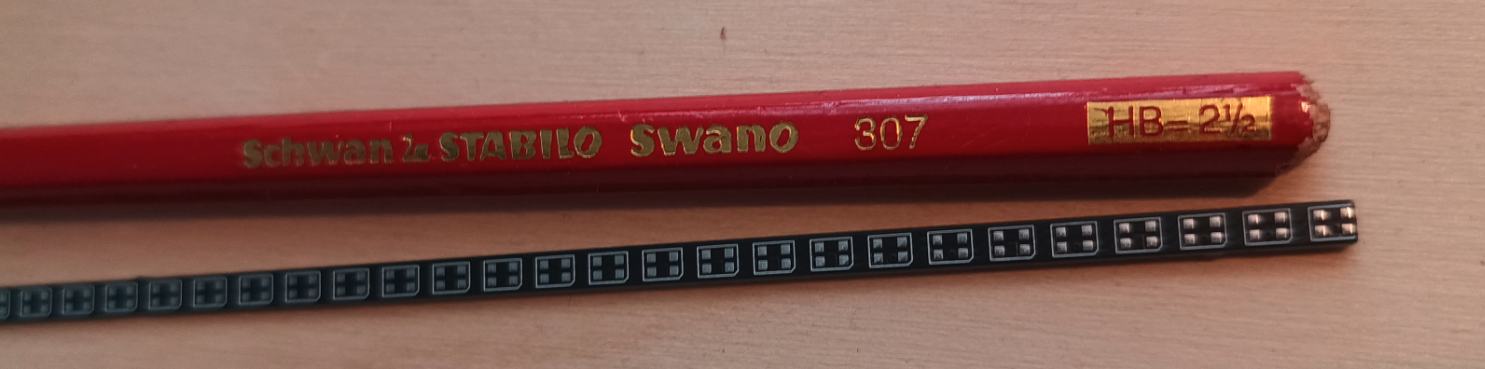

I haven't got any bananas, so heres a pencil for scale

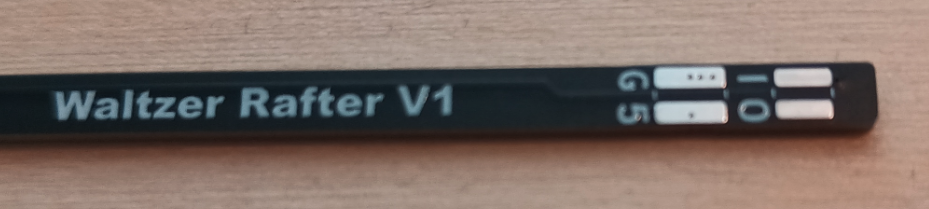

G for Ground
5 for 5V
I for data input
O for data output.

I ordered 100, received 107

The distribution board

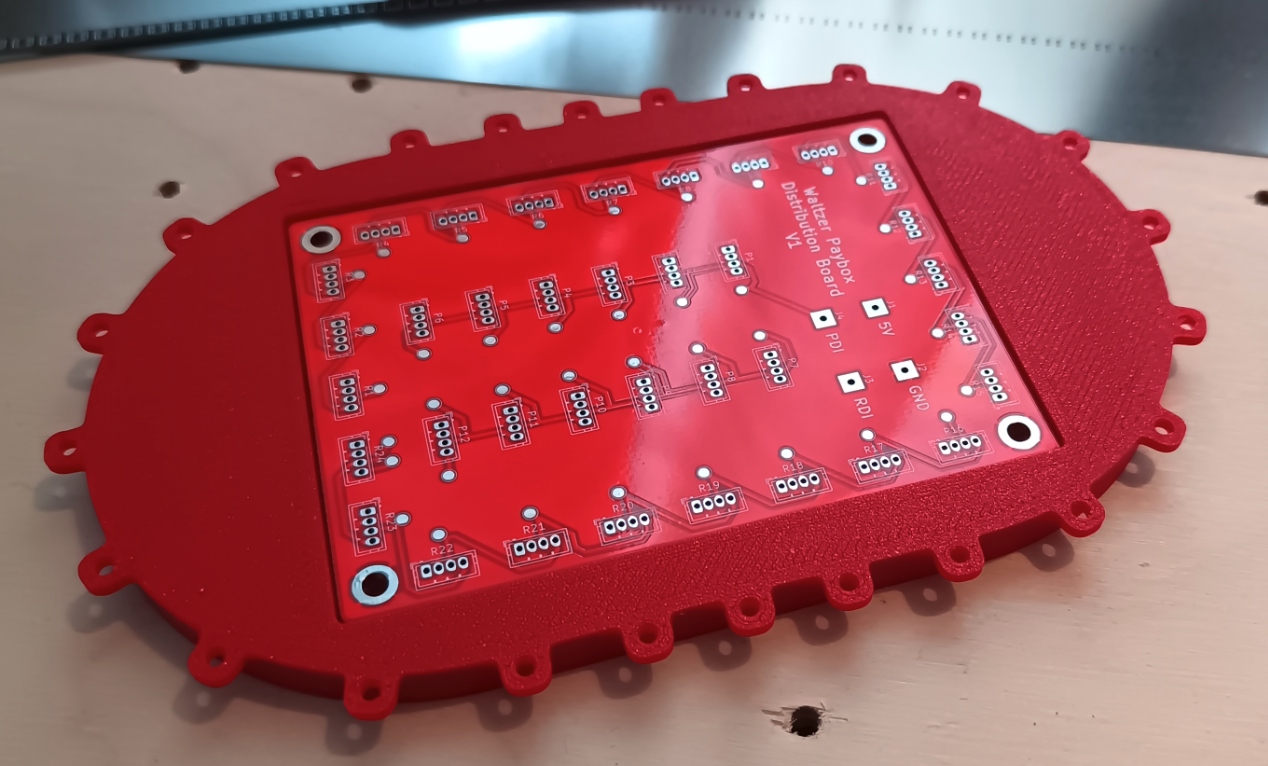

The distribution board sits recessed into the paybox roof, I was originally going to have a hole in the paybox roof for the data and power wires to go though, but i realized i could just solder them to the underside of the board.

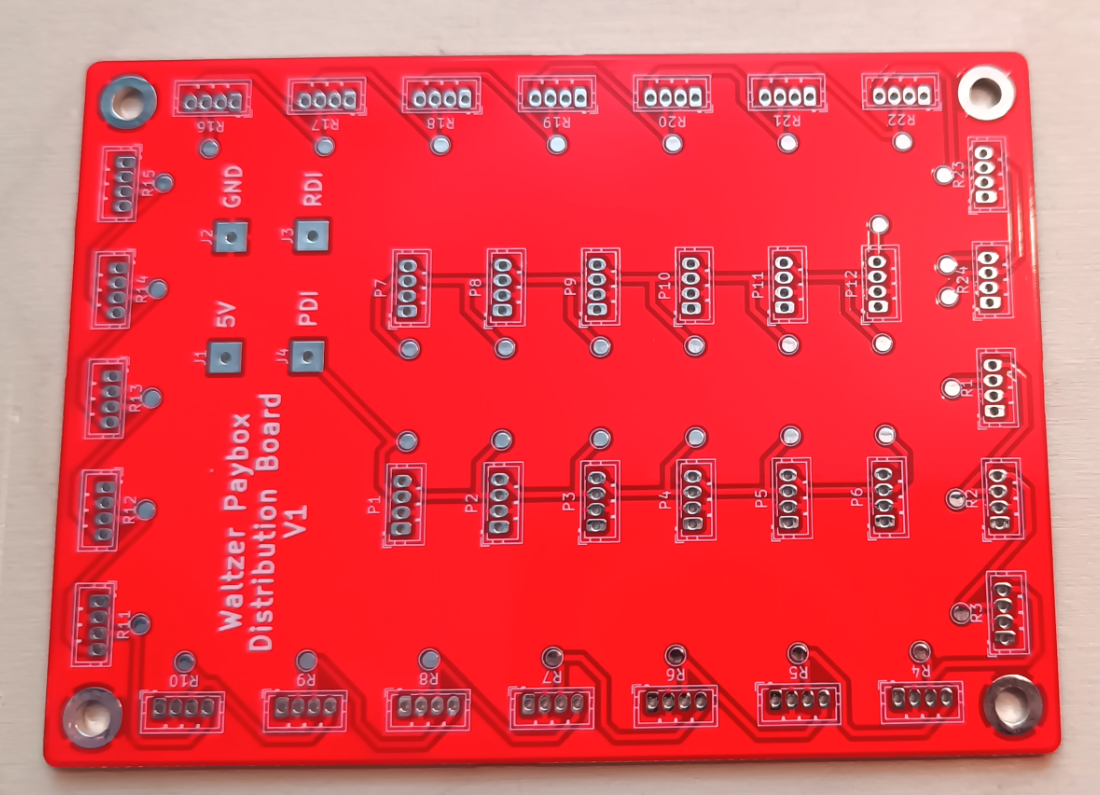

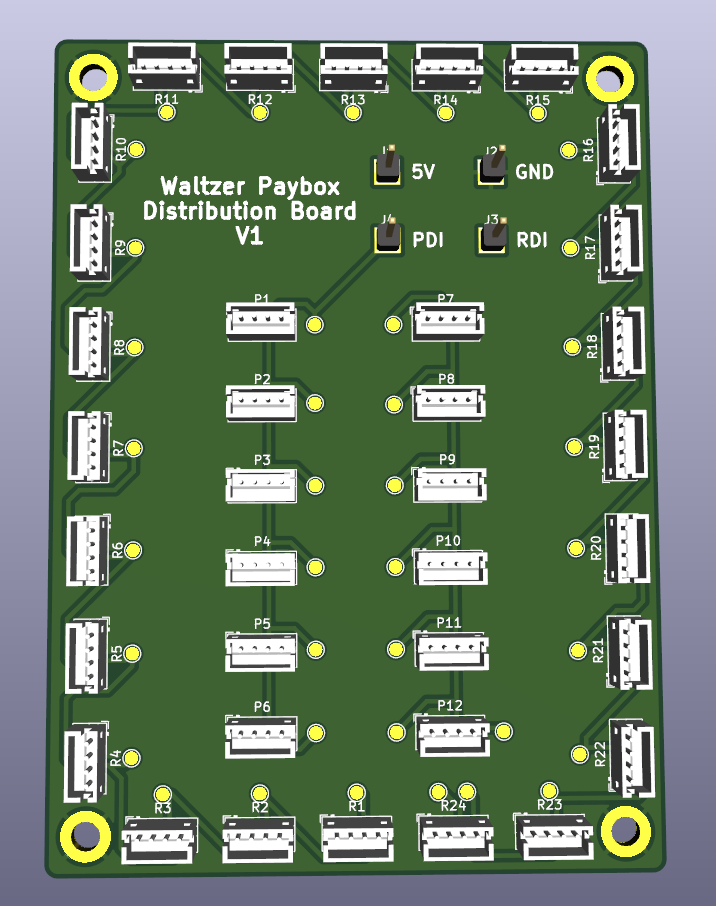

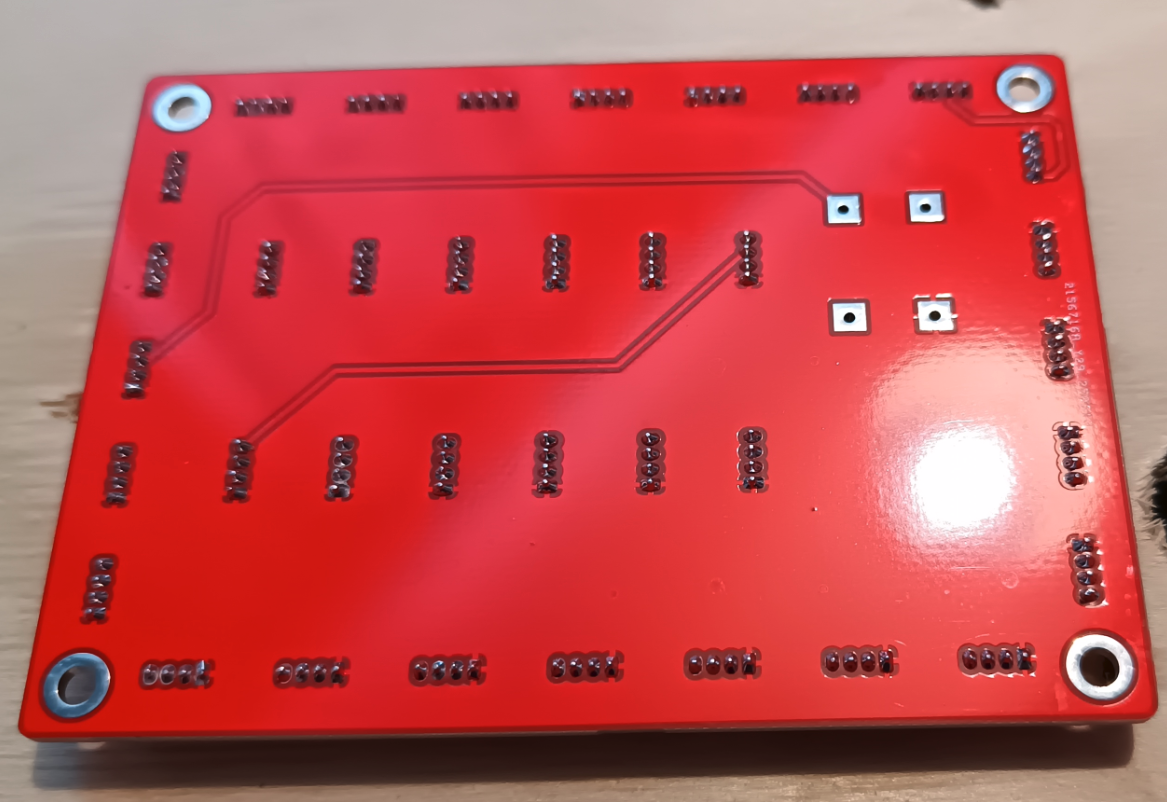

This is the distribution board PCB, The markings for the connectors are, P# for paybox, and R# for the rafters.

The pins for 5v, gnd, pdi and rdi wont actually be pins, ill probably directly solder them as i cant see a reason for the distribution board to be removed.

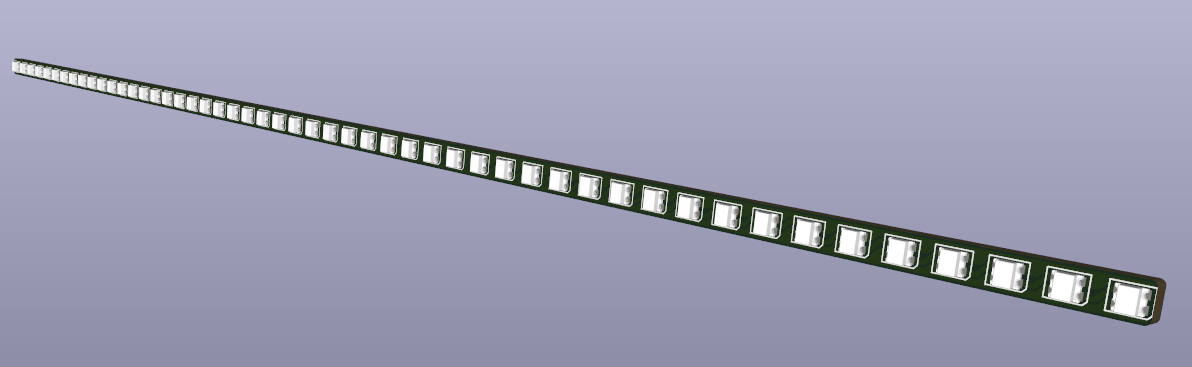

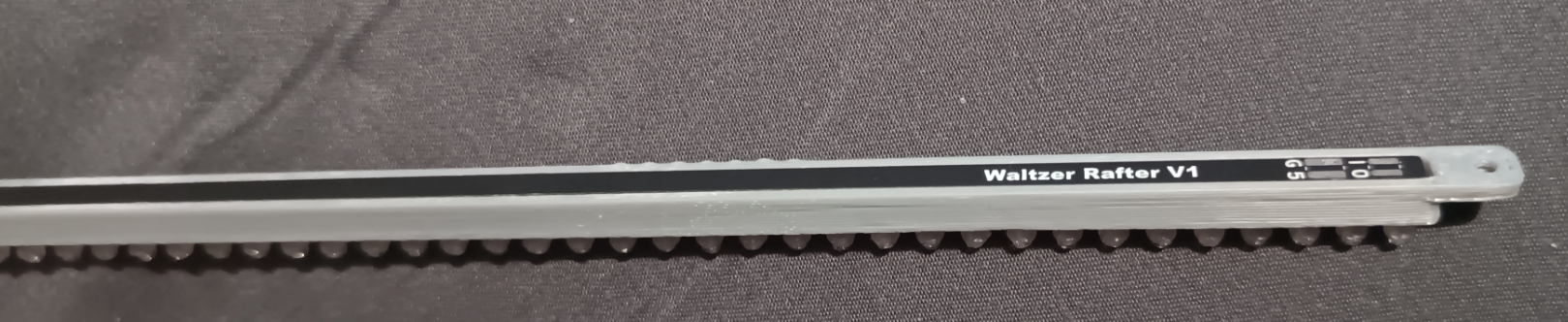

This is the rafter led board, cant really get a good image of it cause its so long.
Its 228mm long by 3mm wide... which will be fun to solder lmao.

This pcb is made to fit all the rafters, I have some marks on the back to indicate the place to cut it for the shorter rafters.

When you cut the board to length for the shorter rafters, there is some pads on the back of the pcb to join it to the data input/output for the next rafter. I was laying the board out when i was high, so im not 100% sure i put the pads in the right place 😂

At the paybox end of the rafter pcb, it has solder pads for data in, data out, 5v and gnd.

The distribution board is basically 2 massive copper pours, one side for 5v and one for gnd, that way there shouldn't be any issue with voltage drop like on those led strips you can buy.

I know your probably thinking, "why didn't he just buy some led strips instead of making his own", well, those led strips, the thinnest i could find was 4mm and they were EXPENSIVE, also they had slightly larger leds (im using ws2812c-2020 leds (2mm x 2mm)), oh and they didnt have the right spacing between the leds. Im using 4.5mm spacing on centers and in the end, it was cheaper to make my own 🤷‍♂️

I worked out the spacing by using countless pictures and videos of waltzer rides, and then buying some Cabochon and using those dimensions to figure out the spacing.

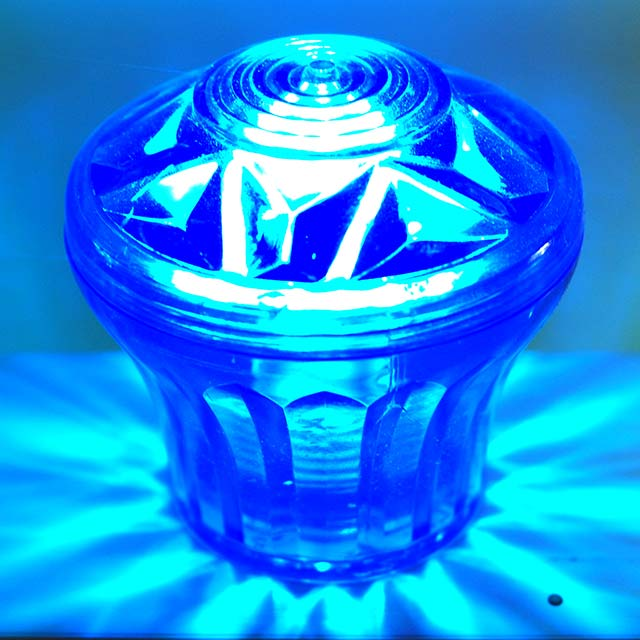

Thats a Cabochon btw, not the actual gemstones they are (presumably) named after.
